Engineering Above the Abyss: How Whistler Built a Chairlift Tower Over a Cliff to Save a Glacier

To skiers and snowboarders riding up Blackcomb Mountain this coming winter, Tower 5 of the brand-new Showcase Chairlift might look like a glitch in the matrix—or a sheer act of daredevil engineering.

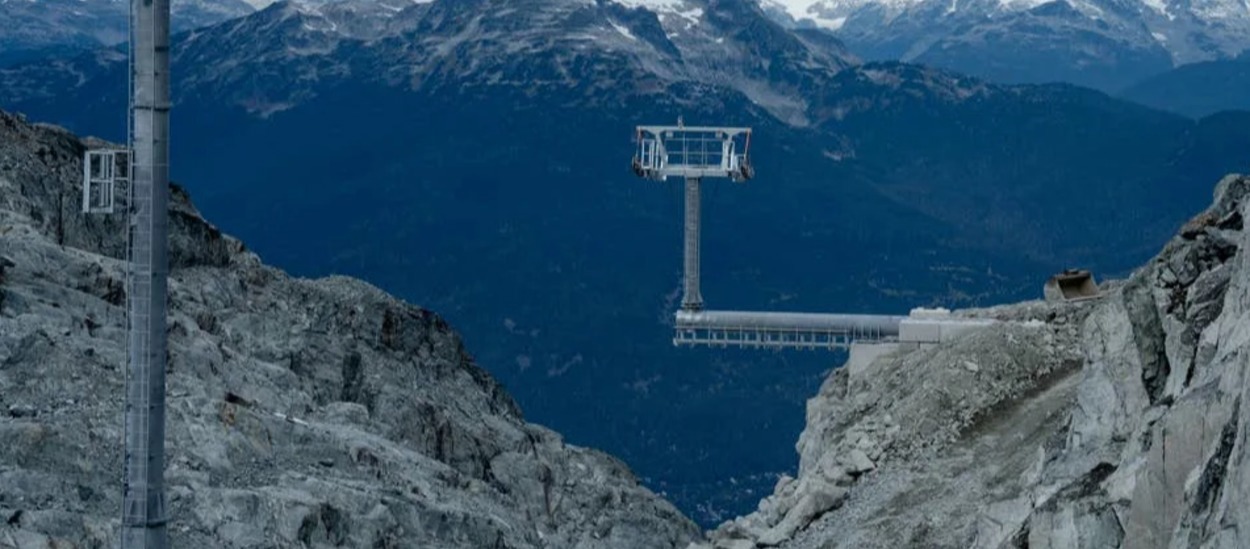

Perched high in the alpine environment near the iconic Horstman and Blackcomb Glaciers, the massive steel tower does not rest on solid earth. Instead, it sits suspended over a sheer drop, mounted to the outer tip of a giant, L-shaped steel beam jutting far out over a rocky cliff face. Complete with a narrow maintenance catwalk along the beam, the structure resembles a high-altitude diving board built for a 15-ton piece of lift machinery.

The unusual setup instantly turned heads across the ski world, with viral photos sparking equal parts awe and vertigo. But as resort engineers explain, this gravity-defying perch was not designed for dramatic effect—it was forced by a hidden geological surprise trapped beneath the mountain's surface.

Technical Snapshot: The New Showcase Chair

The Hidden Ice Trap

The backstory begins with the retirement of the historic Showcase T-Bar. Installed in 1988, the old surface lift had long provided access to over 200 acres of steep alpine bowls, couloirs, and high-glacier terrain. However, as shifting climate patterns caused the underlying Horstman Glacier to recede and melt over recent decades, the T-bar's track grew increasingly steep, unstable, and difficult to maintain. By the 2025–26 season, the surface tow was operating on a borrowed timeline, requiring double the snowpack of any chairlift on the mountain just to run safely.

To solve the issue once and for all, Whistler Blackcomb greenlit a major capital project for summer 2026: replace the drag lift with a modern, fixed-grip quad chairlift manufactured by SkyTrac (a subsidiary of Leitner-Poma of America). The line was shifted north, aligned over solid bedrock to avoid placing towers directly on shifting glacial ice.

Then, ground crews hit an unexpected roadblock at Tower 5.

Geotechnical survey borings revealed that directly beneath the intended foundation lay a deep, buried pocket of stagnant glacial ice. Anchoring a traditional concrete footing on ice is a non-starter; as subterranean ice shifts, thaws, or compresses under load, concrete foundations buckle, risking catastrophic lift failure.

Engineers faced a dilemma: drastically alter the lift line—a move that could jeopardize terrain access and cost millions—or find a way to bridge the gap without touching the subterranean ice.

Steel Over Stone: The Cantilever Solution

Refusing to disturb the sensitive alpine environment or compromise on safety, project engineers devised an audacious cantilevered anchor system.

Instead of digging down into the ice pocket, the team drilled deep into the surrounding, stable granite bedrock on the cliff edge. They installed a massive, heavy-duty steel beam extending outward over the cliff, braced back into the rockface. By anchoring Tower 5 directly onto the far tip of this overhang, the structural load was transferred completely away from the sensitive zone and onto the ancient mountain rock behind it.

The design achieved three goals at once:

1. Structural Stability: It provides a rigid, stationary foundation that meets rigorous alpine safety standards.

2. Environmental Protection: It leaves the subterranean ice pocket untouched and isolated from thermal or mechanical disruption.

3. Terrain Preservation: It kept the chairlift line intact, allowing riders to travel roughly 500 meters up 150 meters of vertical rise in just four minutes.

Responding to early online chatter about safety, resort officials noted that the cantilevered design underwent exhaustive independent engineering reviews and load testing before installation was finalized this autumn.

A Nod to Ski History

While Tower 5 looks radically futuristic, cantilevered lift towers actually share a quiet history in the Pacific Northwest. Whistler veterans quickly pointed out that this is not the mountain's first cantilevered lift tower; the legendary former Big Red Chairlift previously featured a similar overhang structure to navigate a tight cliff section decades ago.

As final pre-opening inspections wrap up ahead of Whistler Blackcomb’s winter kickoff, Tower 5 stands as a testament to modern ski resort engineering. When heavy snowpack arrives, much of the cantilever's rear arm will disappear beneath snow, leaving the tower looking even more like it is floating in mid-air.

For the 2,400 skiers and riders per hour heading into Blackcomb’s high-alpine bowls this winter, the ride up Showcase Chair will offer a brief, spectacular lesson in how far engineers will go to keep high-mountain adventure alive.
